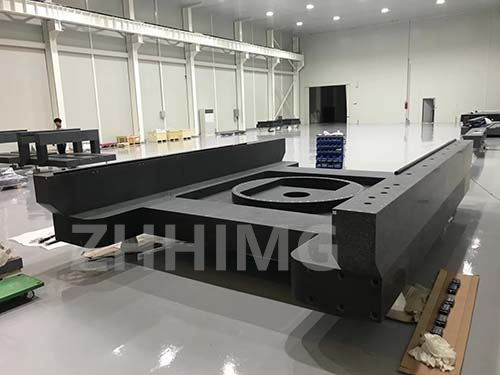

The precision granite assembly for an LCD panel inspection device is a crucial component that ensures the accuracy and precision of the instrument. A precision granite assembly is a flat, stable, and durable platform that provides a perfect surface for machine tools, inspection and laboratory equipment, and other precision measurement instruments. The requirements for precision granite assembly in an LCD panel inspection device are stringent. This article discusses the working environment requirements and how to maintain the working environment for the device.
Working Environment Requirements
The working environment requirements for the precision granite assembly in an LCD panel inspection device are critical. The following are the essential requirements for a working environment.
1. Temperature Control
Temperature control is essential for the proper functioning of the precision granite assembly in an LCD panel inspection device. The working environment must have a controlled temperature of 20°C ± 1°C. A deviation of more than 1°C can cause distortion in the granite assembly, leading to measurement errors.
2. Humidity Control
Humidity control is essential for maintaining the dimensional stability of the granite assembly. The ideal relative humidity level for the working environment is 50% ± 5%, which helps to prevent any moisture from penetrating into the granite assembly.
3. Vibration Control
Vibration control is crucial for the stability and accuracy of the LCD panel inspection device. Any external vibration can cause measurement errors, leading to incorrect results. The working environment must be free from any source of vibration, such as heavy machinery or foot traffic. A vibration control table can help reduce external vibration, ensuring the stability of the granite assembly.
4. Lighting
Lighting is critical for the visual inspection of the LCD panel. The working environment must have uniform lighting to avoid shadows, which can interfere with inspections. The light source must have a color rendering index (CRI) of at least 80 to enable accurate color recognition.
5. Cleanliness
The working environment must be clean to prevent any particle contamination that can interfere with the inspection process. Regular cleaning of the working environment using particle-free cleaning agents and lint-free wipes can help maintain the cleanliness of the environment.
Maintenance of the Working Environment
To maintain the working environment for the LCD panel inspection device, the following are important steps to take:
1. Regular calibration and verification of the device to ensure accuracy and precision.
2. Routine cleaning of the granite assembly to remove any dirt or debris that can interfere with measurements.
3. Regular inspections of the working environment to identify and eliminate any source of vibration that can interfere with the inspection process.
4. Regular maintenance of the temperature and humidity control systems to prevent drift from the desired values.
5. Regular replacement of the light source to maintain uniform lighting and accurate color recognition.
Conclusion
The precision granite assembly in an LCD panel inspection device is a crucial component that requires a controlled working environment for accurate and precise measurements. The working environment must have temperature, humidity, vibration, lighting, and cleanliness control to ensure the stability and accuracy of the granite assembly. Regular maintenance of the working environment is essential to prevent measurement errors and ensure the accuracy and precision of the LCD panel inspection device.
